Sloer Single Phase Hybrid Inverter-Jiangsu Sloer Group Co., ltd

Sloer Single Phase Hybrid Inverter Id：GST48-3500/5500/10K VII Place of origin：Yangzhou, Jiangsu Province

Online inquiry

Previous Next

Detailed content Specification parameter Product packaging

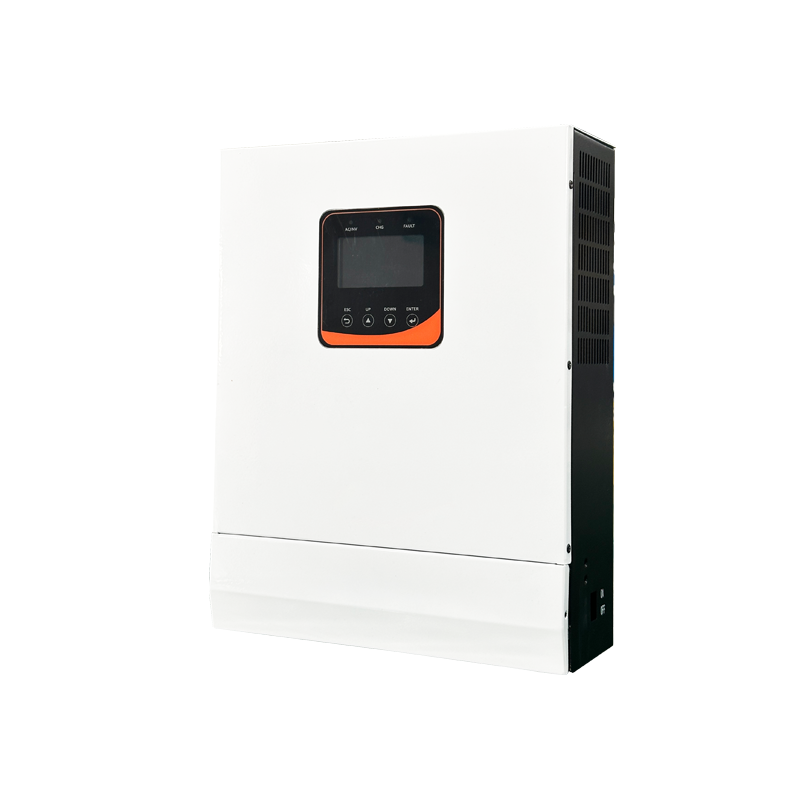

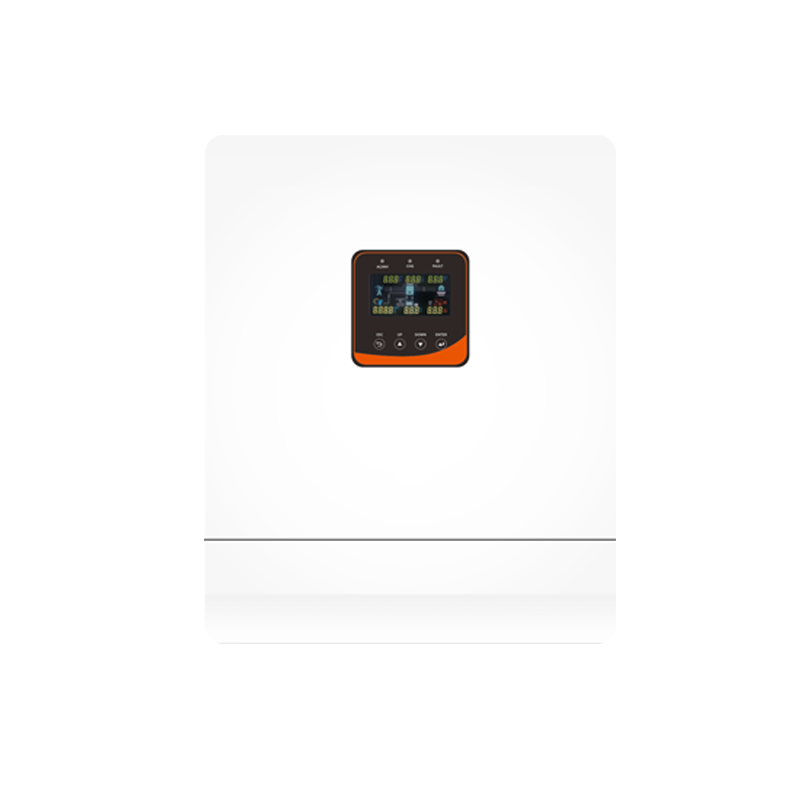

Sloer Single Phase Hybrid Inverter

GST48-3500/5500/10K VII

MODEL	GST48-3500 VII	GST48-5500 VII	GST48-10K VII
INVERTER OUTPUT
Rated output power (W)	3500	5500	10000
Rated output power (VA)	3500	5500	10000
Maximum Peak Power (W)	6000	10000	15000
Load Capacity with Motors (HP)	2	4	6
Rated AC Output	230 VAC (200 / 208 / 220 / 240VAC), 50 / 60Hz
Output Voltage Waveform	Pure Sine Wave
Inverter and Bypass Switching Time	10ms (typical)
Parallel Capacity	9
Maximum Battery Inverter Efficiency	93%
Overload Protection	102%~110%，5min；110%~125%，10s；>125%，2s
BATTERY
Battery Type	Lithium / Lead-acid / User Defined
Rated Battery Voltage (VDC)	48
Battery Voltage Range (VDC)	40~60
Max.MPPT Charging Current (A)	60	100	200
Max.Mains Charging Current (A)	60	60	120
Max.Hybrid Charging Current (A)	80	100	200
Charging current error (ADC)	±3
Charging Short Circuit protection	Blown Fuse
PV CHARGING
MPPT Quantity	1		2
Max. PV array power (W)	4000	5500	5500+5500
Max. PV input current (A)	13	22	22+22
Max. Open Circuit Voltage (VAC)	500		500+500
MPPT Voltage Range (VDC)	120~450
MPPT Tracking Efficiency	99.9%
MAINS INPUT
Input Voltage Range (VAC)	90~280/170~280
Frequency Range (Hz)	50/60±0.3
Output Short Circuit Protection	Circuit breaker
Bypass Overload Current (A)	30	40	63
SPECIFICATIONS
Dimensions (DWH)mm	130350455		130445630
Weight (kg)	11	12	27
Classification of waterproof	IP20
Operating Temperature Range (℃)	-10~55
Storage Temperature Range (℃)	-25~60
Noise (dB)	<60
Heat Dissipation	Forced air cooling (variable speed of fan)
COMMUNICATION
Embedded interface	RS485 / CAN / USB / Dry contact
External module	WIFI/GPRS
CERTIFICATION
Safety	CE(IEC62109-1)
EMC	EN61000
