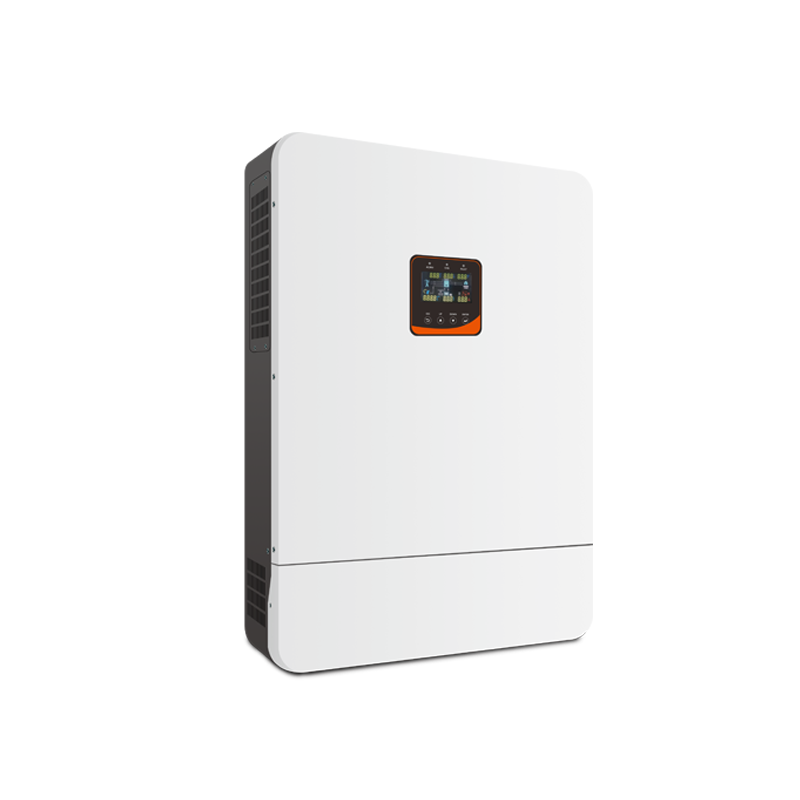

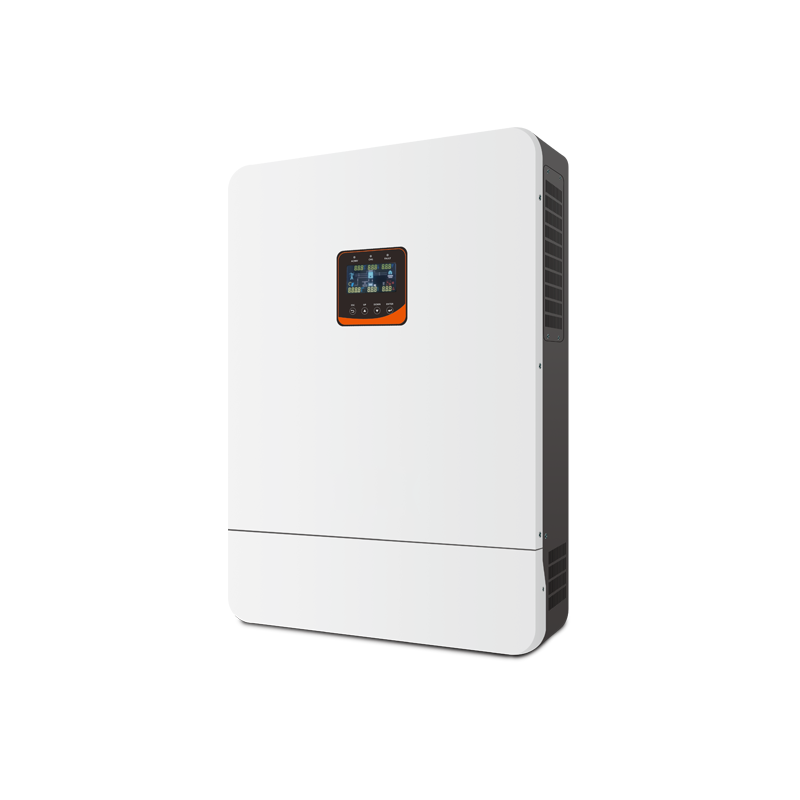

Sloer Three Phase Hybrid Inverter Id：GST48-8/10/12K3 Place of origin：Yangzhou, Jiangsu Province

Online inquiry

Previous Next

Detailed content Specification parameter Product packaging

Sloer Single Phase Hybrid Inverter

GST48-8/10/12K3

MODEL	GST48-8K3	GST48-10K3	GST48-12K3
INVERTER OUTPUT
Rated output power (W)	8000	10000	12000
Rated output power (VA)	8000	10000	12000
Maximum Peak Power (W)	16000	20000	15000
Load Capacity with Motors (HP)	5	4	24000
Rated AC Output	400 VAC Three Phase,50 / 60 Hz
Output Voltage Waveform	Pure Sine Wave
Inverter and Bypass Switching Time	10ms (typical)
Maximum Battery Inverter Efficiency	93%
Overload Protection	102%~110%，5min；110%~125%，10s；>125%，2s
BATTERY
Battery Type	Lithium / Lead-acid / User Defined
Rated Battery Voltage (VDC)	48
Battery Voltage Range (VDC)	40~60
Max.Mains Charging Current (A)	100	120	120
Max.Hybrid Charging Current (A)	180	220	260
Charging current error (ADC)	±3
Charging Short Circuit protection	Blown Fuse
PV CHARGING
MPPT Quantity	2
Max. PV array power (W)	6000+6000	7500+7500	9000+9000
Max. PV input current (A)	22+22
Max. Open Circuit Voltage (VAC)	800
MPPT Voltage Range (VDC)	120~450
MPPT Tracking Efficiency	99.9%
MAINS INPUT
Input Voltage Range (VAC)	Phase Voltage 170~280, Line Voltage 305~485
Frequency Range (Hz)	50/60±0.3
Output Short Circuit Protection	Circuit breaker
Bypass Overload Current (A)	63
SPECIFICATIONS
Dimensions (DWH)mm	130445630
Weight (kg)	27
Classification of waterproof	IP20
Operating Temperature Range (℃)	-10~55
Storage Temperature Range (℃)	-25~60
Noise (dB)	<60
Heat Dissipation	Forced air cooling (variable speed of fan)
COMMUNICATION

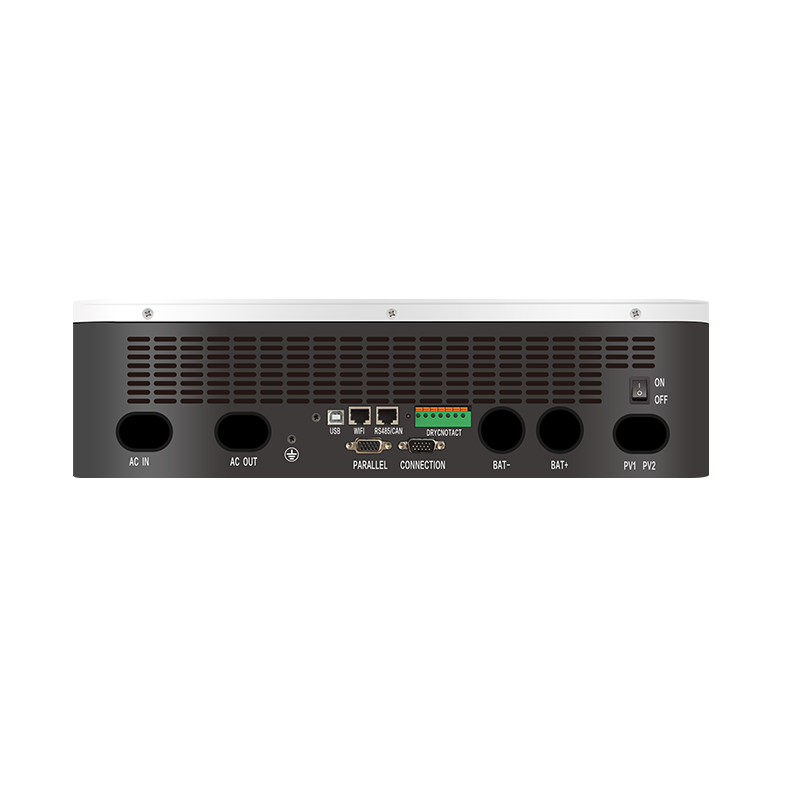

Embedded interface	RS485 / CAN / USB / Dry contact
External module	WIFI/GPRS
CERTIFICATION
Safety	CE(IEC62109-1)
EMC	EN61000
