48V Rack-Mounted Low-Voltage Lithium Battery Id：SLE-R-48100 Place of origin：Yangzhou, Jiangsu Province

Online inquiry

Previous Next

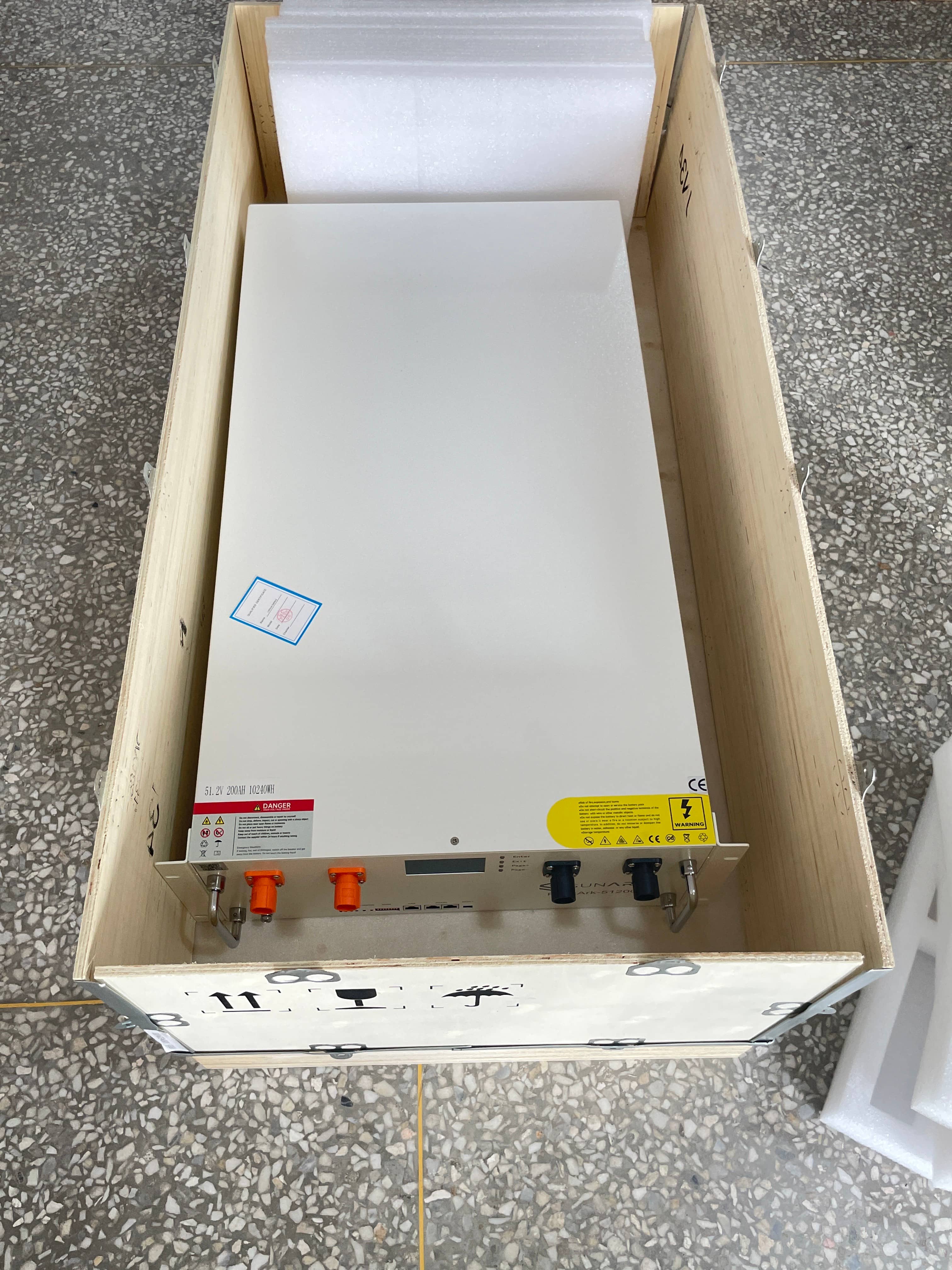

Detailed content Specification parameter Product packaging

MODEL	RackArk-48100	RackArk-48150	RackArk-48200
Product	48V 100Ah	48V 200Ah	48V 200Ah
Nominal Voltage	DC48V
Nominal Capacity	100Ah	150Ah	200Ah
Dimension (mm)	482×463×178	482×600×178	482×809×178
Weight (kg)	46	90
Nominal Voltage (V)	48
Nominal Capacity (WH)	4800	9600	9600
Usable Capacity (WH)	4320
Discharge Voltage (V)	43.5
Charge Voltage (V)	52.5
Recommend Charge/ Discharge Current (A)	50	100	150
Max. Charge/ Discharge Current (A)	100 (3S)	200 (3S)	300 (3S)
Communication	RS485/CAN/Bluetooth(Optional)
Working Temperature	0-40°C
Storage Temperature	-20-70°C
Humidity	10%-80%
Certification	CE/IEC/UN38.3/MSDS
Design Life	10 years+
Cycle Life	≥6000@90%DOD(25±5°C)
Electrical Design Redundancy	> 20%
